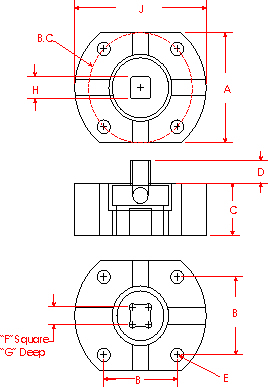

RETROLOK MOUNTING DETAILS
|
|||||||||||
 |
MODEL |
B |
B.C. |
A |
C |
D |
E |
F |
G |
H |
J |
F05/14 |
1.39 |
1.969 |
2.125 |
1.438 |
0.63 |
0.28 |
0.551 |
0.63 |
0.550 |
2.50 |
|
F07/17 |
1.95 |
2.756 |
2.75 |
1.313 |
0.70 |
0.34 |
0.669 |
0.70 |
0.669 |
3.50 |
|
F7/19 |
1.95 |
2.756 |
2.75 |
1.313 |
0.75 |
0.34 |
0.748 |
0.70 |
0.748 |
3.50 |
|
F10/22 |
2.84 |
4.016 |
3.50 |
1.688 |
0.88 |
0.41 |
0.866 |
1.00 |
0.866 |
4.75 |
|
F10/27 |
2.84 |
4.016 |
3.50 |
1.688 |
1.13 |
0.41 |
1.06 |
1.13 |
1.063 |
4.75 |
|
F12/27 |
3.48 |
4.920 |
4.50 |
1.873 |
1.13 |
0.56 |
1.06 |
1.13 |
1.063 |
6.00 |
|
F14/36 |
3.89 |
5.512 |
5.25 |
1.938 |
1.25 |
0.69 |
1.417 |
1.25 |
1.416 |
6.50 |
|
F16/46 |
4.60 |
6.496 |
6.25 |
3.75 |
1.88 |
0.844 |
1.816 |
2.00 |
1.810 |
8.00 |
|
NOW AVAILABLE FOR OTHER ACTUATORS |
|||||||||||
